內(nèi)徑 in / mm | 外徑 mm | 正壓 barDIN 26057 (50%延伸率) | 負(fù)壓 barDIN 26057 (軸向固定) | 彎曲 mm半徑 | 重量 kg/m | 最小 m數(shù)量 |
---|---|---|---|---|---|---|

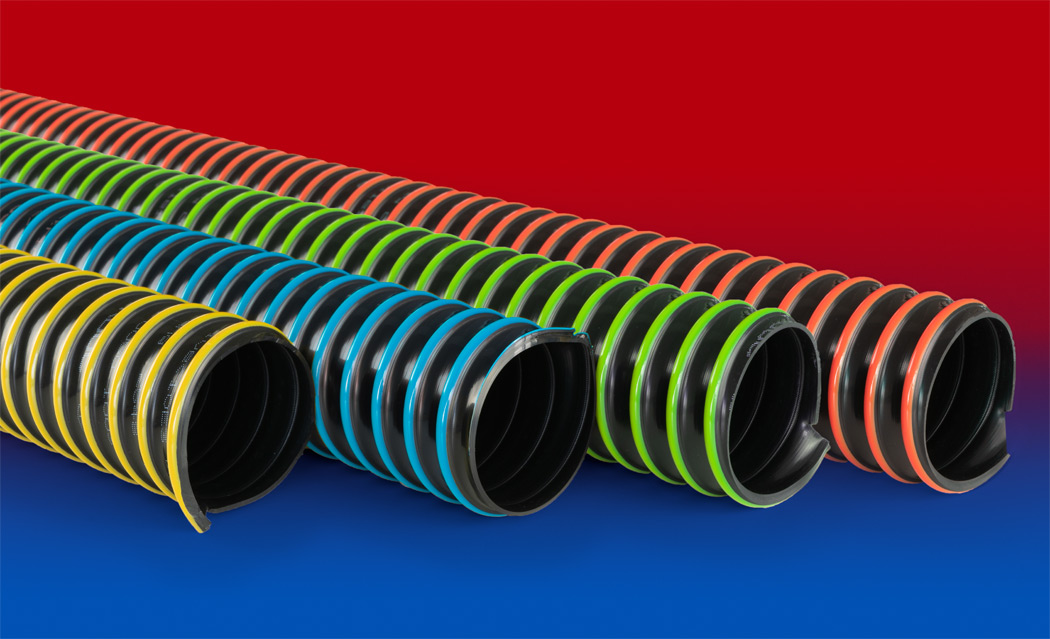

黑色 + 紅色 | ||||||
1,25 / 32 | 42 | 3,770 (7,15) | 1,000 (1,00) | 26 | 0,440 | 150 |
1,5 / 38 | 48 | 3,215 (6,07) | 1,000 (1,00) | 29 | 0,520 | 150 |
- / 40 | 50 | 3,065 (5,78) | 1,000 (1,00) | 30 | 0,540 | 150 |
2 / 50-51 | 60 | 2,485 (4,67) | 0,825 (1,00) | 35 | 0,660 | 150 |
2,36 / 60 | 70 | 2,090 (3,91) | 0,685 (1,00) | 40 | 0,780 | 150 |
2,5 / 63-65 | 75 | 1,935 (3,62) | 0,635 (1,00) | 43 | 0,840 | 150 |
- / 70 | 81 | 1,800 (3,37) | 0,540 (1,00) | 62 | 0,980 | 150 |
3 / 75-76 | 86 | 1,685 (3,15) | 0,505 (1,00) | 66 | 1,050 | 100 |
- / 80 | 91 | 1,585 (2,96) | 0,475 (1,00) | 69 | 1,110 | 100 |
- / 85 | 96 | 1,545 (2,85) | 0,465 (0,95) | 73 | 1,205 | 100 |
4 / 100-102 | 111 | 1,275 (2,38) | 0,390 (0,93) | 83 | 1,490 | 100 |
5 / 125-127 | 136 | 1,025 (1,91) | 0,315 (0,60) | 101 | 1,840 | 100 |
5,5 / 140 | 151 | 0,920 (1,71) | 0,280 (0,48) | 111 | 2,030 | 80 |
6 / 150-152 | 161 | 0,860 (1,59) | 0,270 (0,53) | 118 | 2,410 | 80 |
6,3 / 160 | 171 | 0,805 (1,50) | 0,255 (0,47) | 125 | 2,560 | 80 |
8 / 200-203 | 213 | 0,645 (1,20) | 0,150 (0,36) | 156 | 3,120 | 60 |
黑色 + 綠色 | ||||||
1,25 / 32 | 42 | 3,770 (7,15) | 1,000 (1,00) | 26 | 0,440 | 150 |
1,5 / 38 | 48 | 3,215 (6,07) | 1,000 (1,00) | 29 | 0,520 | 150 |
- / 40 | 50 | 3,065 (5,78) | 1,000 (1,00) | 30 | 0,540 | 150 |
2 / 50-51 | 60 | 2,485 (4,67) | 0,825 (1,00) | 35 | 0,660 | 150 |
2,36 / 60 | 70 | 2,090 (3,91) | 0,685 (1,00) | 40 | 0,780 | 150 |
2,5 / 63-65 | 75 | 1,935 (3,62) | 0,635 (1,00) | 43 | 0,840 | 150 |
- / 70 | 81 | 1,800 (3,37) | 0,540 (1,00) | 62 | 0,980 | 150 |
3 / 75-76 | 86 | 1,685 (3,15) | 0,505 (1,00) | 66 | 1,050 | 100 |
- / 80 | 91 | 1,585 (2,96) | 0,475 (1,00) | 69 | 1,110 | 100 |
- / 85 | 96 | 1,545 (2,85) | 0,465 (0,95) | 73 | 1,205 | 100 |
4 / 100-102 | 111 | 1,275 (2,38) | 0,390 (0,93) | 83 | 1,490 | 100 |
5 / 125-127 | 136 | 1,025 (1,91) | 0,315 (0,60) | 101 | 1,840 | 100 |
5,5 / 140 | 151 | 0,920 (1,71) | 0,280 (0,48) | 111 | 2,030 | 80 |
6 / 150-152 | 161 | 0,860 (1,59) | 0,270 (0,53) | 118 | 2,410 | 80 |
6,3 / 160 | 171 | 0,805 (1,50) | 0,255 (0,47) | 125 | 2,560 | 80 |
8 / 200-203 | 213 | 0,645 (1,20) | 0,150 (0,36) | 156 | 3,120 | 60 |
黑色 + 藍(lán)色 | ||||||
1,25 / 32 | 42 | 3,770 (7,15) | 1,000 (1,00) | 26 | 0,440 | 150 |
1,5 / 38 | 48 | 3,215 (6,07) | 1,000 (1,00) | 29 | 0,520 | 150 |
- / 40 | 50 | 3,065 (5,78) | 1,000 (1,00) | 30 | 0,540 | 150 |
2 / 50-51 | 60 | 2,485 (4,67) | 0,825 (1,00) | 35 | 0,660 | 150 |
2,36 / 60 | 70 | 2,090 (3,91) | 0,685 (1,00) | 40 | 0,780 | 150 |
2,5 / 63-65 | 75 | 1,935 (3,62) | 0,635 (1,00) | 43 | 0,840 | 150 |
- / 70 | 81 | 1,800 (3,37) | 0,540 (1,00) | 62 | 0,980 | 150 |
3 / 75-76 | 86 | 1,685 (3,15) | 0,505 (1,00) | 66 | 1,050 | 100 |
- / 80 | 91 | 1,585 (2,96) | 0,475 (1,00) | 69 | 1,110 | 100 |
- / 85 | 96 | 1,545 (2,85) | 0,465 (0,95) | 73 | 1,205 | 100 |
4 / 100-102 | 111 | 1,275 (2,38) | 0,390 (0,93) | 83 | 1,490 | 100 |
5 / 125-127 | 136 | 1,025 (1,91) | 0,315 (0,60) | 101 | 1,840 | 100 |
5,5 / 140 | 151 | 0,920 (1,71) | 0,280 (0,48) | 111 | 2,030 | 80 |
6 / 150-152 | 161 | 0,860 (1,59) | 0,270 (0,53) | 118 | 2,410 | 80 |
6,3 / 160 | 171 | 0,805 (1,50) | 0,255 (0,47) | 125 | 2,560 | 80 |
8 / 200-203 | 213 | 0,645 (1,20) | 0,150 (0,36) | 156 | 3,120 | 60 |
黑色 + 黃色 | ||||||
1,25 / 32 | 42 | 3,770 (7,15) | 1,000 (1,00) | 26 | 0,440 | 150 |
1,5 / 38 | 48 | 3,215 (6,07) | 1,000 (1,00) | 29 | 0,520 | 150 |
- / 40 | 50 | 3,065 (5,78) | 1,000 (1,00) | 30 | 0,540 | 150 |
2 / 50-51 | 60 | 2,485 (4,67) | 0,825 (1,00) | 35 | 0,660 | 150 |
2,36 / 60 | 70 | 2,090 (3,91) | 0,685 (1,00) | 40 | 0,780 | 150 |
2,5 / 63-65 | 75 | 1,935 (3,62) | 0,635 (1,00) | 43 | 0,840 | 150 |
- / 70 | 81 | 1,800 (3,37) | 0,540 (1,00) | 62 | 0,980 | 150 |
3 / 75-76 | 86 | 1,685 (3,15) | 0,505 (1,00) | 66 | 1,050 | 100 |
- / 80 | 91 | 1,585 (2,96) | 0,475 (1,00) | 69 | 1,110 | 100 |
- / 85 | 96 | 1,545 (2,85) | 0,465 (0,95) | 73 | 1,205 | 100 |
4 / 100-102 | 111 | 1,275 (2,38) | 0,390 (0,93) | 83 | 1,490 | 100 |
5 / 125-127 | 136 | 1,025 (1,91) | 0,315 (0,60) | 101 | 1,840 | 100 |
5,5 / 140 | 151 | 0,920 (1,71) | 0,280 (0,48) | 111 | 2,030 | 80 |
6 / 150-152 | 161 | 0,860 (1,59) | 0,270 (0,53) | 118 | 2,410 | 80 |
6,3 / 160 | 171 | 0,805 (1,50) | 0,255 (0,47) | 125 | 2,560 | 80 |
8 / 200-203 | 213 | 0,645 (1,20) | 0,150 (0,36) | 156 | 3,120 | 60 |
